Structural Engineering, Stamped Drawings & Custom Frame Design
Steel Engineering & Design
Every steel building stands or fails on its engineering. We provide stamped structural drawings, custom frame design, and Ontario Building Code compliant packages — whether you're a contractor needing sealed plans for permit, an owner adapting a kit to your site, or a developer scoping a new build from scratch.
Specify by
program.
The PEB-MS envelope adapts to occupancy. Switch program to see code-default loads, geometry windows, and material families. Final values are set during preliminary design — all subject to an Ontario PEng review.
- Storey Range3 – 5
- Floor-to-Floor4.0 m
- Typical Bay (primary × secondary)9 × 9 m
- Maximum Footprint< 7,500 m²
- Cantilever Capability≤ 3.0 m
- Live Load (typical)2.4 kPa
- Snow (GTA Ss / Sr)1.8 / 0.4 kPa
- Wind (q 1/50)0.44 kPa
- Inter-storey Drift Limith/400
- Floor Vibration8 Hz min
- ColumnsHSS 254–356 · W310–360
- Primary BeamsW360 × 39 – W530 × 82
- Secondary / JoistsW200 – W360 + OWSJ
- Composite Deck76 mm galv. + 65 mm topping
- Lateral SystemCBF · MRF · Combination
Values shown reflect typical GTA — Toronto / Vaughan / Markham / Brampton / Oakville. Site-specific loads may vary.
Download PEB-MS-OFF.pdfSeven layers.
One stamped
frame.
Click any callout to inspect specification, grade, and the engineering decision behind it. Each component is fabricated to shop tickets with tolerances tighter than CSA W59 minimums.
HSS 305 × 305 × 13
Primary Column
CSA G40.21 / 350W
Carries gravity load floor-to-foundation. HSS preferred for clean architectural reveal and torsional stiffness.
- Capacity (φCr)4 200 kN
- Fire Rating1 hr · gypsum encapsulated
- ConnectionBolted splice every 2 storeys
- Weight120 kg/m
Concept to
occupancy
in 18 weeks.
Six phases. Each one ends in a deliverable the next phase consumes — no gaps, no rework, no surprises at building permit.
18wk
Average
6
Stage Gates
1
Sealed Submission
Phase [01]
1–2 wk
Brief & Site
Site, occupancy, footprint, height limits, neighbour conditions, soils.
- Concept floor plate
- Block massing
- Code-path memo
Phase [02]
2–3 wk
Schematic Design
Bay grid, lateral system selection, vertical circulation, MEP zones.
- Stamped SD package
- Steel tonnage estimate
- GMP cost band
Phase [03]
4–6 wk
Engineering & Permit
Member sizing, connection design, drift + vibration check, PEng seal.
- Permit drawings
- Structural calculations
- OBC matrix
Phase [04]
3–4 wk
Shop Tickets
CNC fabrication models, weld maps, paint schedule, erection sequence.
- IFC fabrication model
- Bolt list
- Crane plan
Phase [05]
5–7 wk
Fabrication
CWB W47.1 div 1 shop. Mill-test reports tracked to each member.
- Mill certs
- NDT reports
- Pre-coat inspection
Phase [06]
4–6 wk
Erection & Closeout
Field welding, decking, slab pours, lateral commissioning, sign-off.
- As-built drawings
- Bolt torque log
- Letter of compliance
Sealed by an
Ontario PEng.
Every PEB-MS package is checked against the codes below before it leaves the office. Submission packages are tabbed, indexed, and ready for municipal plan review on first reading.
1.6 – 1.7 kPa
Lakeshore
1.7 – 1.8 kPa
Inner GTA
1.9 – 2.0 kPa
York / Durham N
- OBC 2024
Ontario Building Code
Part 4 (structural design), Part 3 (fire & life safety), Part 6 (HVAC).
- NBCC 2020
National Building Code of Canada
Reference standard for environmental loads and limit states design.
- CSA S16-19
Design of Steel Structures
Member sizing, connection design, seismic provisions, ductile fuses.
- CSA W47.1
Certified Welding Bureau
Division 1 fabrication shop. CWI-supervised welding throughout.
- CSA W59
Welded Steel Construction
Workmanship + acceptance for shop and field welds.
- CISC HSC
Handbook of Steel Construction
Connection details, member tables, erection practice — Canadian.
- ULC S101
Fire Endurance Tests
Listed assemblies for column, beam, and floor fire ratings.
- CSA Z276
Site Class Determination
Geotechnical site response classification for seismic design.
Built across
the GTA.
Three recent PEB Multi-Storey buildings — each engineered, fabricated, and erected by the same team that will run your project.
14 multi-storey buildings completed · 2018–2025
View Full ArchiveTell us
the building.
We'll size
the steel.
Configure a starting point below. We'll send a sealed preliminary package — bay grid, member sizes, ballpark cost, and 18-week schedule — within 48 hours.
Response
48hr
Quote
No Cost
Sealed By
Ontario PEng
Serves
All GTA + S. Ont
Project Brief / Form-01
Preliminary Configuration
Preliminary Estimate
GFA
1,102 m²
Steel
50 T
Budget
$2039k – $2645k
No spam · No marketing list · No phone scripts
Structure Details
Engineered for Ontario projects
Every building can be configured around site conditions, use case, door placement, clear height, insulation needs, snow loads, and future expansion planning.
P.Eng sealed structural drawings
Ontario Building Code (OBC) compliance
Custom snow, wind, and seismic load calculations
Foundation and anchor bolt design
Frame modifications for existing buildings

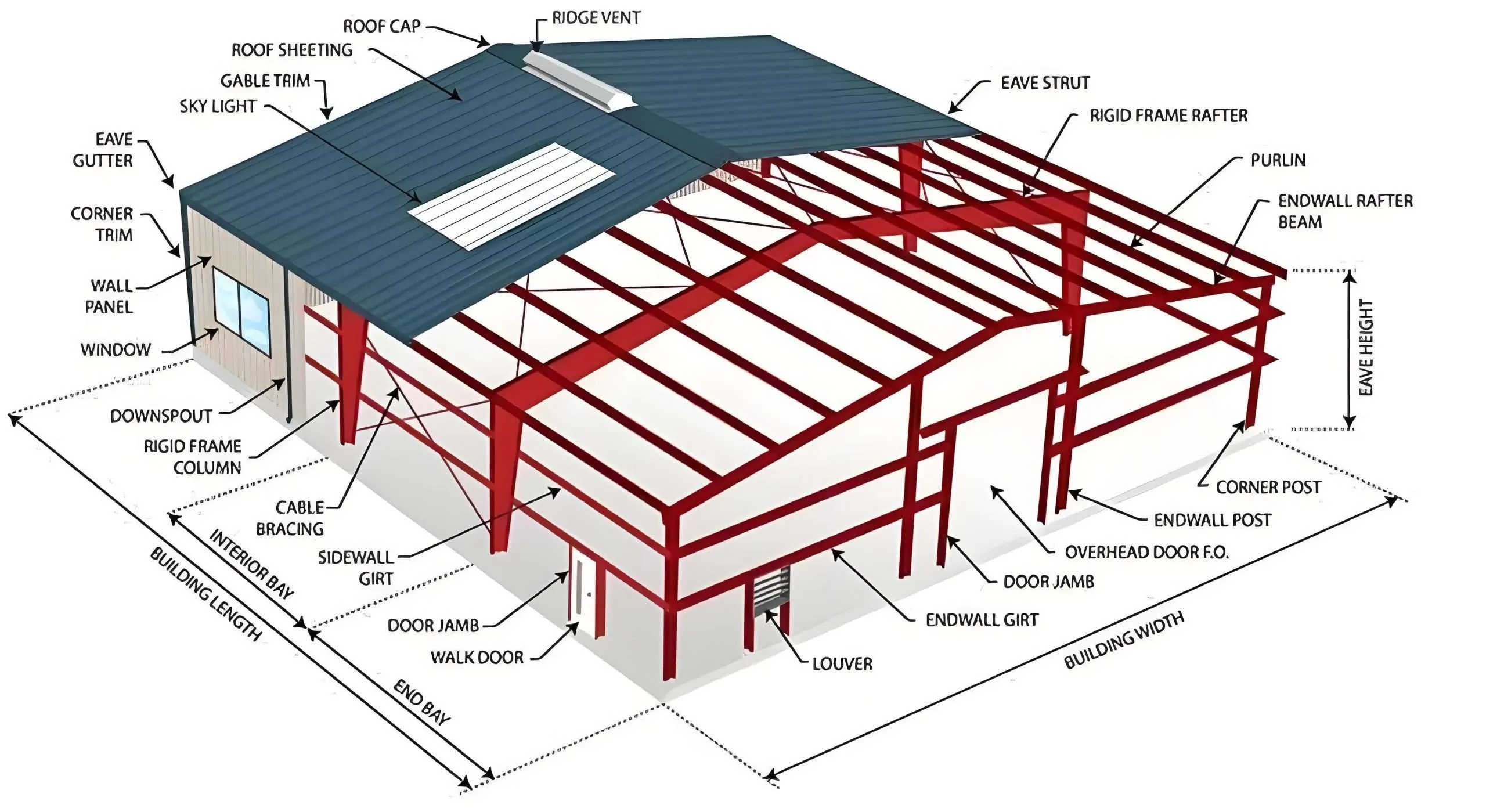

Structural steel engineering drawings and blueprints

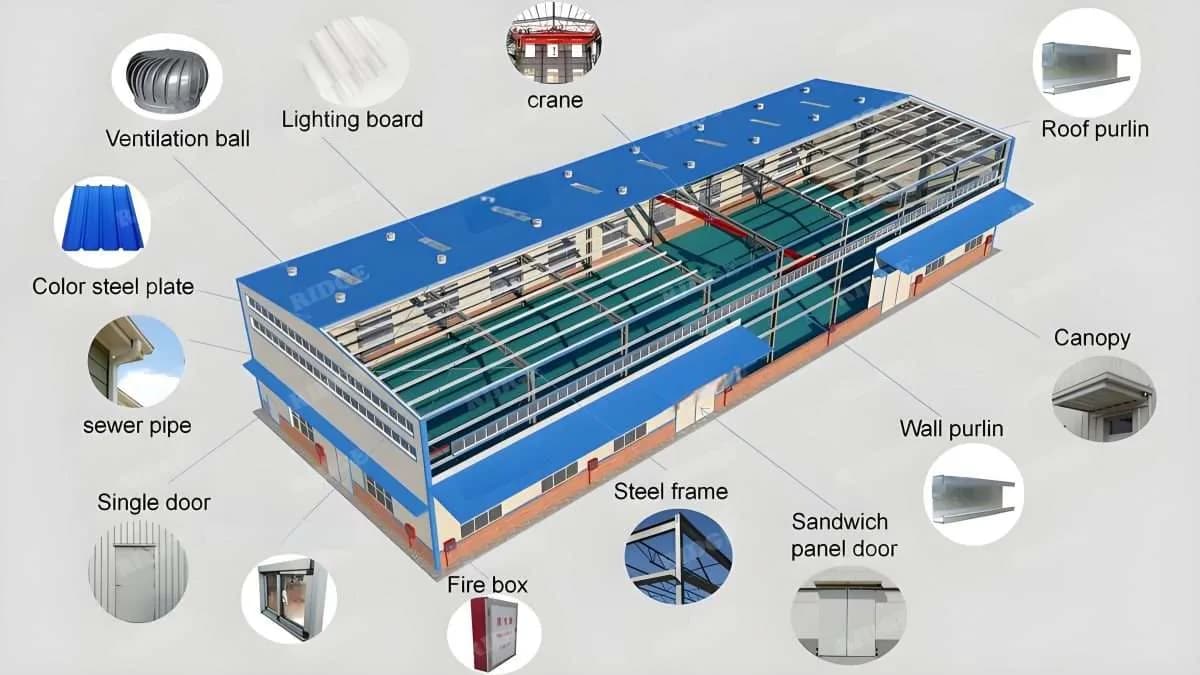

Engineer reviewing steel frame design on site
Planning Notes
What to consider before building
Start Your Project
Need a steel engineering & design?
Tell us your location, target size, building use, and preferred timeline. We can help shape the right steel building concept for your Ontario site.
